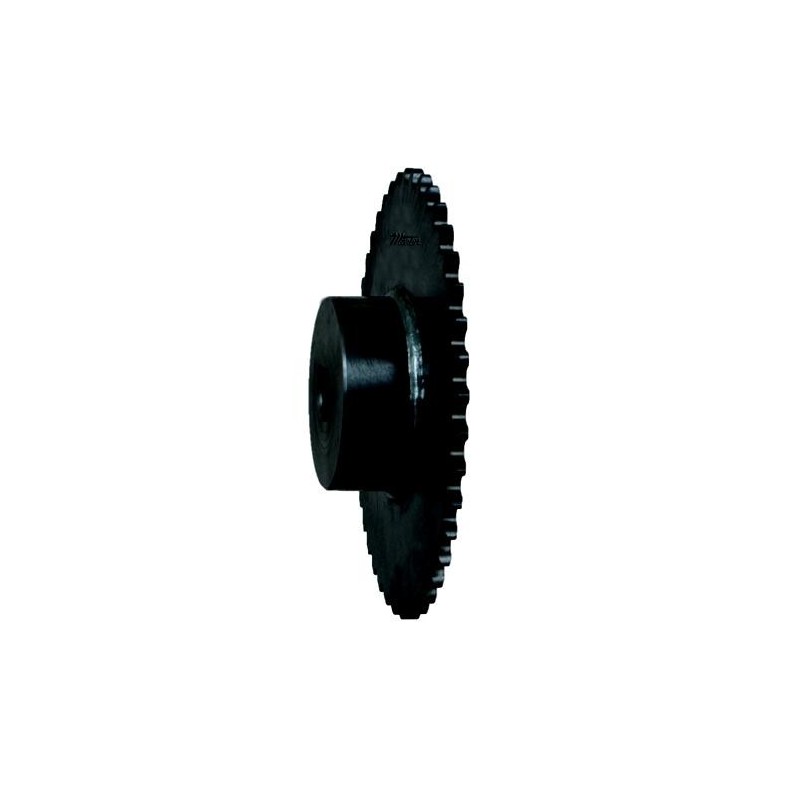

40B29 Browning
Chain Sprockets
Specifications
| Product Type | Type "B" Minimum Bore Sprocket |
|---|---|
| Mounting Style | Minimum Bore |
| Bore Type | Minimum Plain Bore |
| Material | Steel |
| Length Through Bore (in) | 1 |
| Outside Diameter (in) | 4.9 |
| Overall Length (in) | 1 |
| Bore Diameter (in) | 0.625 |
| Pitch Diameter (in) | 4.625 |
| Chain Pitch (in) | 0.5 |
| Number of Teeth | 29 |
| Number of Strands/Width | 1 |
| Hub Diameter (in) | 3.25 |
| Chain Used | No. 40, 1/2 in. Pitch ANSI Chain |
| Maximum Bore (in) | 2.25 |
| Minimum Bore (in) | 1 |
| Number of Strands | 1 |
| Pitch (in) | 40 |
| Width Across Tooth Sets (in) | 0.284 |
| Number of Hubs | 1 |
