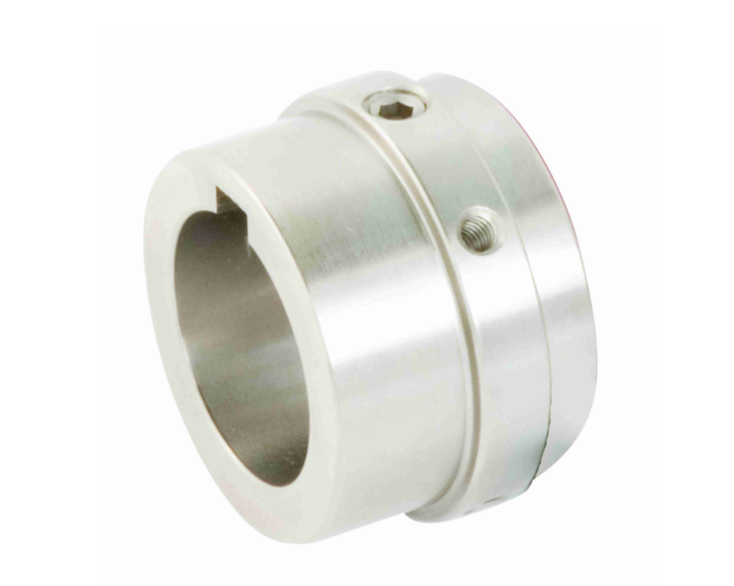

10 HSB x 7/8 Omega

https://www.liberholdings.com/web/image/product.template/52646/image_1920?unique=ce63bd3

10 HSB, .875 B 3/16 X 3/32 KW 1SS, 7385821, 10287552

$ 105.51 105.51 USD $ 105.51

Not Available For Sale

  • Series
  • Product
  • Coupling Size
  • Coupling Type
  • Hub Barrel Outside Diameter (in)
  • Hub Length (in)
  • Hub Style
  • Hub Material
  • Hub Bore Fit
  • Hub Shoulder Diameter (in)
  • Hub Straight Bore Diameter [Max] (in)
  • Hub Straight Bore Diameter [Min] (in)
  • Number of Keyways
  • Number of Set Screws
  • Hub Straight Bore Diameter [Nom] (in)
  • Keyway Depth (in)
  • Keyway Width (in)

This combination does not exist.

View-Only Catalog SKU: 10287552 Direct Procurement & RFQ
Request a Quote +1 (832) 791-2535

Direct online checkout is disabled on Liber Holdings. For volume discounts, blanket purchase agreements, and fast shipment, submit an RFQ or call our corporate sales desk.

Technical Specifications Verified Specs
Series Hubs
Product Omega Hubs
Coupling Size 10
Coupling Type Elastomeric
Hub Barrel Outside Diameter (in) 3.3
Hub Length (in) 1.88
Hub Style Standard Bore (HSB)
Hub Material Steel
Hub Bore Fit Clearance
Hub Shoulder Diameter (in) 3.65
Hub Straight Bore Diameter [Max] (in) 0.876
Hub Straight Bore Diameter [Min] (in) 0.875
Number of Keyways 1
Number of Set Screws 1
Hub Straight Bore Diameter [Nom] (in) 0.875
Keyway Depth (in) 0.0938
Keyway Width (in) 0.1875
Multi-State Hub Fulfillment Stocked & fulfilled through RBC Industrial (El Paso, TX) and Tooling Components (Union City, PA).
Contact Us

This product has no valid combination.

Series: Hubs
Product: Omega Hubs
Coupling Size: 10
Coupling Type: Elastomeric
Hub Barrel Outside Diameter (in): 3.3
Hub Length (in): 1.88
Hub Style: Standard Bore (HSB)
Hub Material: Steel
Hub Bore Fit: Clearance
Hub Shoulder Diameter (in): 3.65
Hub Straight Bore Diameter [Max] (in): 0.876
Hub Straight Bore Diameter [Min] (in): 0.875
Number of Keyways: 1
Number of Set Screws: 1
Hub Straight Bore Diameter [Nom] (in): 0.875
Keyway Depth (in): 0.0938
Keyway Width (in): 0.1875
